产品说明
一般描述

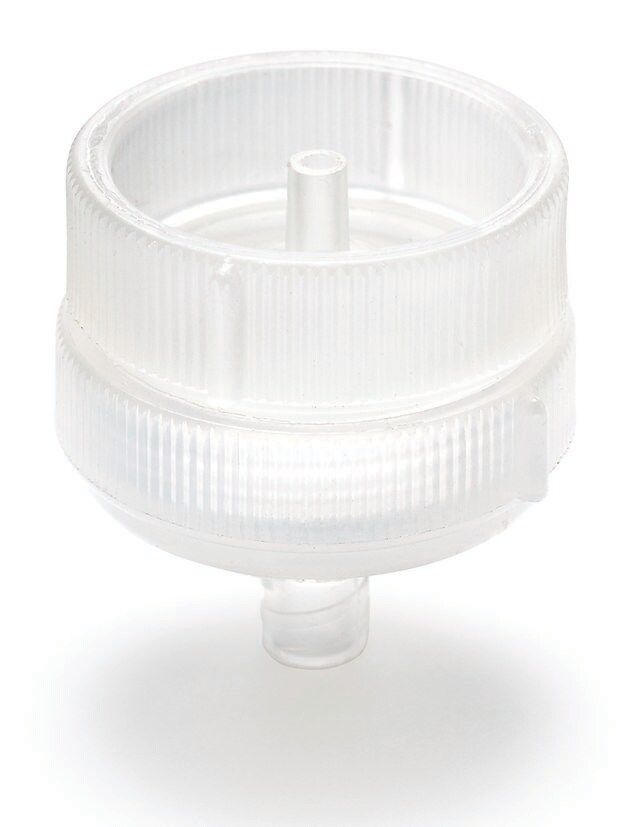

Make your own syringe filter! Swinnex filter holders give you the flexibility to select the membrane type and diameter that are most appropriate for your application. For sterile filtration, autoclave you Swinnex filter holders with the membrane in place. Ultraclean or sterilize small volumes of liquids dispensed by a syringe or install in-line to filter larger volumes.
Features & Benefits:
•Available in three sizes for a range of process volumes
•Autoclavable with filter in place for sterile filtration
SX0001300 Swinnex Filter Holder, 13 mm
SX0002500 Swinnex Filter Holder, 25 mm
SX0004700 Swinnex Filter Holder, 47 mm
Replacement Parts
SX0001301 Silicone Gaskets for 13 mm Swinnex Filter Holder
SX0002501 Silicone Gaskets for 25 mm Swinnex Filter Holder
XX2702510 Support Screen, 25 mm, polypropylene
XX1104715 Support Screen, 47 mm, polypropylene
XX1104707 O-ring (5-329) for Swinnex 47 mm Filter Holder, silicone
SX0004701 Base O-ring for Swinnex 47 mm Filter Holder, silicone
SX00047RK Replacement Parts Kit for Swinnex 47 mm Filter Holder
应用
生命科学的研究与开发，制药业及质检，医院制剂
原理
压力
制备说明
Sterilization Method
可装膜后高压高温灭菌
法律信息
Luer-Lok is a registered trademark of Becton-Dickinson & Co.
SWINNEX is a registered trademark of Merck KGaA, Darmstadt, Germany
基本信息
| eCl@ss | 32031613 |
| NACRES | NB.24 |
产品性质
| 质量水平 | 100 |
| 物料 | polypropylene device silicone gasket silicone seal |
| manufacturer/tradename | Swinnex® |
| 参数 | 121 ℃ max. temp. 3.5 bar max. inlet pressure (50 psi) |
| 长度 | 3.7 cm |
| 直径 | 3.2 cm |
| 过滤器直径 | 25 mm |
| 过滤面积 | 3.4 cm2 |
| prefilter diam. | 22 mm , thick depth prefilter |
| 配件 | female Luer-Lok® inlet connection female Luer-Lok® inlet fitting male Luer outlet slip |
| application(s) | filtration |
| 相容性 | for use with Sterifil Aseptic System |
| 运输 | ambient |
