产品介绍:
产品说明
应用

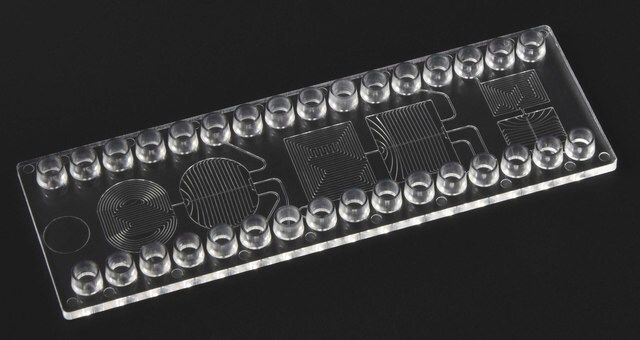

The Phase Guide Mixer Fluidic 533 COC microfluidic chip applies passive phaseguided mixing principles and is not meant to be used in flow-through mode.
特点和优势

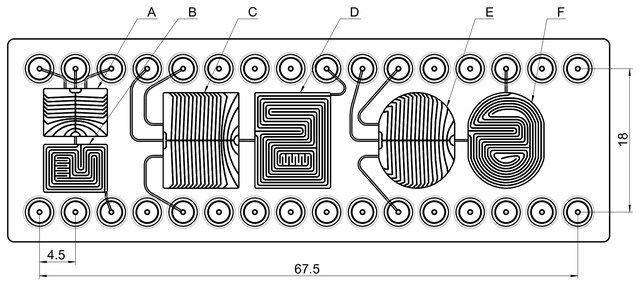

- Three varying micromixing units per chip
- Each unit features three inlets and one outlet
- Phaseguide technology provides complete control over the filling and emptying of microfluidic structures
组分
Chip Properties:
- Mini Luer Interface
- Material: Cyclic olefin copolymer (COC)
- Volume of Chambers A & B: 5.6 μl
- Volume of Chambers C & D: 13.2 μl
- Volume of Chambers E & F: 11.1 μl
This mixer is based on the principles described in S. Hakenberg et al., A phaseguided passive batch microfluidic mixing chamber for isothermal amplification, Lab Chip, 12, 4576-4580, 2012.
产品性质
描述 | Microfludic chip x1 |
