graphene ink

导电墨水

品牌
Sigma-Aldrich
货号
796115
规格纯度
for gravure printing, with ethyl cellulose in terpineol, gravure printable
参考价格
4513.92 *本价格含增值税费
促销
数量
-+
产品介绍:

产品说明

一般描述

Gravure printable graphene dispersion has shown promising uses in printed and flexible electronics owning to its high speed and high resolution of deposition.

应用

Formulated for Gravure printing.
Curing Condition: 250-350 ℃, 20-30 min

包装

10 mL in glass bottle

法律信息

Sold under Material Transfer Agreement with Mark Hersam group at Northwestern University.

产品性质

形式liquid
电阻率 0.003-0.008 Ω-cm (thermally annealed 250 ℃ for 30 minutes, film thickness >100 nm)
粒径≤3 μm
表面张力30-35 dyn/cm
粘度0.75-3 Pa.s(25 ℃) (shear viscosity at 100 s-1, 25 ℃)
bp213-218 ℃ (Terpineol)
密度0.9-1.1 g/mL at 25 ℃

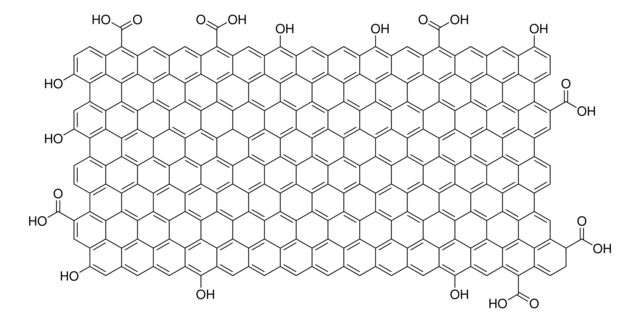

SMILES stringOC(C1=C2C(C3=C(C4=C(C5=C(C6=C(C7=C(C8=C(C9=C(C%10=C(C%11=C(C%12=C(C%13=C(C%14=C(C%15=CC=C%16O)C%16=C%17)C%17=C%18)C%18=C%19C(O)=O)C%19=C%20)C%20=C%21O)C%21=C%22)C%22=C%23)C%23=C%24O)C%24=C%25)C%25=C%26C(O)=O)C%26=C%27)C%27=C2)=C%28C%29=C(C%30=C%31C%28=C%3

安全信息

象形图GHS07
警示用语:Warning
危险声明H315 - H319
预防措施声明P302 + P352 - P305 + P351 + P338
危险分类Eye Irrit. 2 - Skin Irrit. 2
储存分类代码10 - Combustible liquids
WGKWGK 2
