Graphene FET chip

品牌
Sigma-Aldrich
货号
GRFETS20
包装型号
规格纯度
S20
参考价格
3819.91 *本价格含增值税费
促销
数量
-+
产品介绍:

产品说明

一般描述

Graphene FET chip (GFET-S20 chip) is a graphene based field effect transistor which can be coated on silicon substrate by atmospheric pressure chemical vapor deposition (CVD). It also has similar gate insulators in the source and drain.
Device configuration:

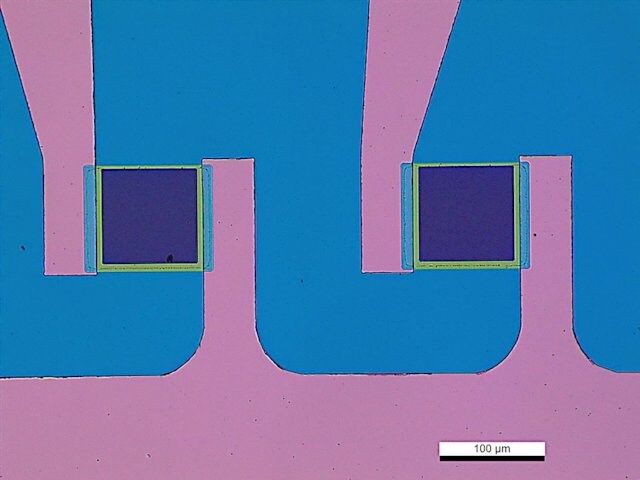

The graphene FET-S20 chip is designed for measurements in liquid medium. This chip provides 12 graphene devices, with encapsulation on the metal pads to avoid degradation and reduce leakage currents, and the probe pads located near the periphery of the chip. It also includes a non-encapsulated electrode at the center of the chip, which allows liquid gating without the need of an external gate electrode.

应用

  • Bioelectronics
  • FET based sensor research for active materials deposited on graphene
  • Clinical applications
  • Biosensors

GFET-S20 chip can be used as a biosensor and a chemical sensor for biological applications.

特点和优势

Device Features:

  • State-of-the-art GFETs utilizing consistently high-quality CVD monolayer graphene
  • Metallic contacts and metal/graphene interface are encapsulated to avoid degradation and reduce leakage current in liquid environment
  • Perfect platform device for new sensor research and development
  • 12 individual GFETs per chip
  • A central gate electrode

产品性质

描述Absolute Maximum Ratings
Maximum gate-source voltage: ± 50 V
Maximum temperature rating: 150 ℃
Maximum drain-source current density: 107 A/cm2
Chip dimensions: 10 mm x 10 mm
Chip thickness: 675 μm

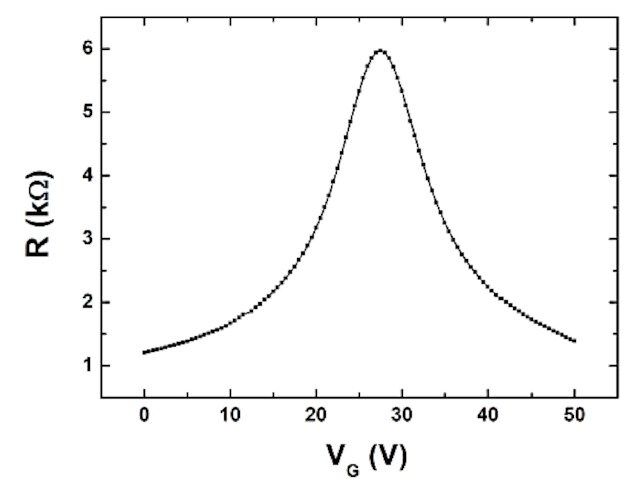

Dirac point: < 50 V
Yield >75%
Encapsulation: 50 nm Al2O3 + 100 nm Si3N4
Gate oxide materials: 90 nm SiO2
Graphene field-effect mobility: >1000 cm2/V·s
Monolayer CVD grown Graphene based 2-probe field effect transistors (FET).
Number of devices per chip: 12
Resistivity of substrate: 1-10 Ω·cm
Metallization: Chromium/Gold-Palladium 2/50 nm

安全信息

储存分类代码11 - Combustible Solids
WGKWGK 3
闪点(F)Not applicable
闪点(C)Not applicable
