产品说明
一般描述

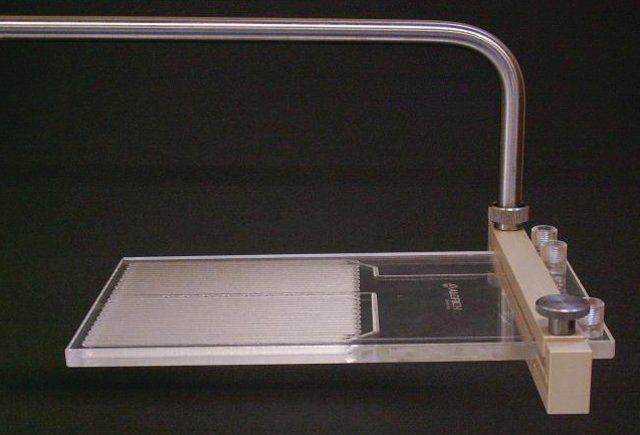

glass Microreactor for continuous flow chemical synthesis in a laboratory environment particularly for liquid/liquid systems
组分
1 Microreactor, type XXL (glass)
1 Holder (PEEK)
1 Rod for holder (stainless steel)
物理属性
Permissible temperature range:-100 to +250 ℃
Permissible pressure range: 6.5 bar at +20 ℃
Dimensions:209 x 128 x 8 (20 incl. threads) mm
Inner channel diameter: Max. 2 mm (+/- 10%)
Channel volumes Pre-heating line: 7 mL, each
Mixing section: 1 mL
Residence section: 15 mL
Total volume: 16 mL
Weight: 402 g
Material: Borosilicate glass (Schott Borofloat® 33)
Specific heat conductance: λ_ 1.1 - 1.3 W m-1K-1 (temp. range 25 to 150 ℃)
Connections: 1/4" - 28 female
Suitable fittings: PEEK 1/4" - 28 male, sigma-aldrich product 671452
法律信息
Schott is a registered trademark of Schott AG
基本信息
| NACRES | NA.22 |
