产品介绍：
产品说明
一般描述
Grace Bio-Labs ProPlate® multi-array chambers (microarray systems) are designed to be used with ONCYTE® nitrocellulose-coated slides. These multi-array chambers integrate microscope slide based microarray technology with high-throughput (HTS applications) microtiter plate processing. Up to 64 individual arrays can be assayed per slide.
Three or four slides fit into a tray (depending on clip choice). The resulting multi-array chamber tray set produces a modular plate with a standard microtiter plate footprint and well spacing allowing high-throughput robotic processing of up to 256 arrays.
Features:
- Up to 64 leak-proof wells on any slide surface without the use of adhesive
- Microtiter plate well spacing facilitates use with multichannel pipettes
- 7 x 7 mm square wells are ideal for high content arrays 5-350 ul well volumes accommodate small reagent and large wash volumes
法律信息
Oncyte is a registered trademark of Grace Bio-Labs, Inc.
ProPlate is a registered trademark of Grace Bio-Labs, Inc.
基本信息
| NACRES | NB.15 |
产品性质
| 物料 | black silicone (on Delrin) rectangular wells |
| 无菌性 | non-sterile |
| 特点 | wells 1 |
| manufacturer/tradename | Grace Bio-Labs 246851 |

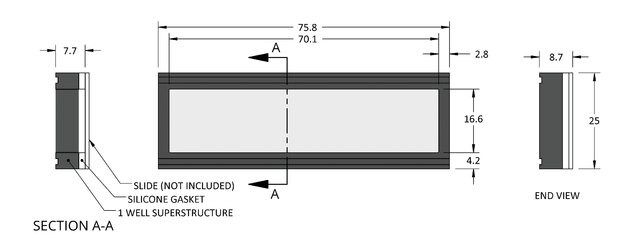

| 宽度 × 长度 | 16.5 mm × 79 mm |
| 尺寸 | 1 well |
| 孔体积 | 350 μL |
| 颜色 | none |
