产品介绍：
产品说明
一般描述

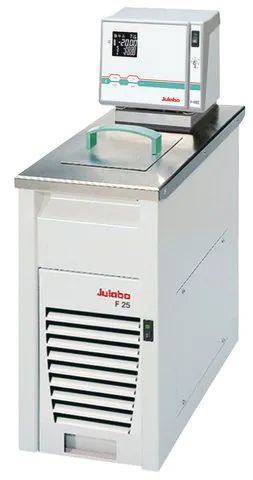

For internal and external temperature applications. All HighTech circulators are capable of monitoring an external system directly with an optional Pt 100 temperature sensor. Safety class 3.
- ICC = Intelligent Cascade Control
- Optimum temperature stability with varying systems achieved by the self-tuning controller, adjustable PID control parameters
- VFD Comfort display, resolution to 0.01℃
- RS232 and RS485 interface, option: integrated Profibus
- LCD display (HL model only) for convenient user-guidance, analog/digital setpoint input. Display resolution 0.01 up to 99.99℃
法律信息
Julabo is a registered trademark of Julabo USA, Inc.
基本信息
| NACRES | NB.77 |
产品性质
| manufacturer/tradename | F34-HE Julabo 9212634 |
| 参数 | -30 ℃ temp. range (150 ℃) 0.2 bar suction rate (0.4 bar) 0.4 bar pump pressure (0.7 bar) 22-26 L/min pump flow |
| 冷却能力 | 0.45 kw (at 20 ℃) |
| 液槽开口宽度 × 长度 × 直径 | 24 cm × 30 cm × 15 cm |
| 体积 | 20 L |
