产品介绍：
产品说明
应用
Hole transporting material (HTM) for use in inorganic-organic hybrid Perovskite solar cells
包装
1 g in glass bottle
其他说明
Device structure:
TiO2 (mesoporous)/CH3NH3PbI3/Py-C (HTM)/Au
Device performance:
- JSC = 20.2 mA/cm2
- VOC = 0.89 V
- FF = 69.4%
- PCE = 12.4%
基本信息

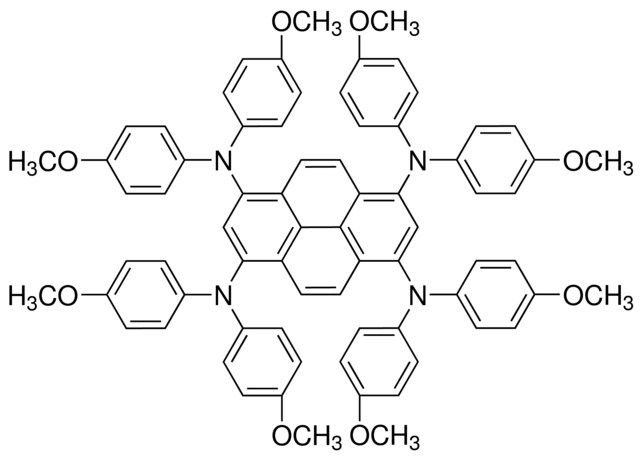

| 经验(实验)分子式 | C72H62N4O8 |
| 分子量 | 1111.28 |
| PubChem化学物质编号 | 329768691 |
| NACRES | NA.23 |
产品性质
| 测定 | ≥98% |
| 质量水平 | 100 |
| 形式 | powder |
| mp | 174-181 ℃ (decomposition) |
| λmax | 492 nm in chlorobenzene (lit.) |
| 轨道能量 | HOMO 5.11 eV (opt) LUMO 2.74 eV (CV) |
| SMILES string | COC(C=C1)=CC=C1N(C2=CC=C(OC)C=C2)C3=C(C=C4)C(C(C4=C(N(C5=CC=C(OC)C=C5)C6=CC=C(OC)C=C6)C=C7N(C8=CC=C(OC)C=C8)C9=CC=C(OC)C=C9)=C7C=C%10)=C%10C(N(C%11=CC=C(OC)C=C%11)C%12=CC=C(OC)C=C%12)=C3 |
| InChI | 1S/C72H62N4O8/c1-77-55-25-9-47(10-26-55)73(48-11-27-56(78-2)28-12-48)67-45-68(74(49-13-29-57(79-3)30-14-49)50-15-31-58(80-4)32-16-50)64-43-44-66-70(76(53-21-37-61(83-7)38-22-53)54-23-39-62(84-8)40-24-54)46-69(65-42-41-63(67)71(64)72(65)66)75(51-17-33-59(81-5)34-18-51)52-19-35-60(82-6)36-20-52/h9-46H,1-8H3 |
| InChI key | JUQSGFMWZQXKJS-UHFFFAOYSA-N |
安全信息
| 储存分类代码 | 13 - Non Combustible Solids |
| WGK | WGK 3 |
| 闪点(F) | Not applicable |
| 闪点(C) | Not applicable |
