产品说明
一般描述

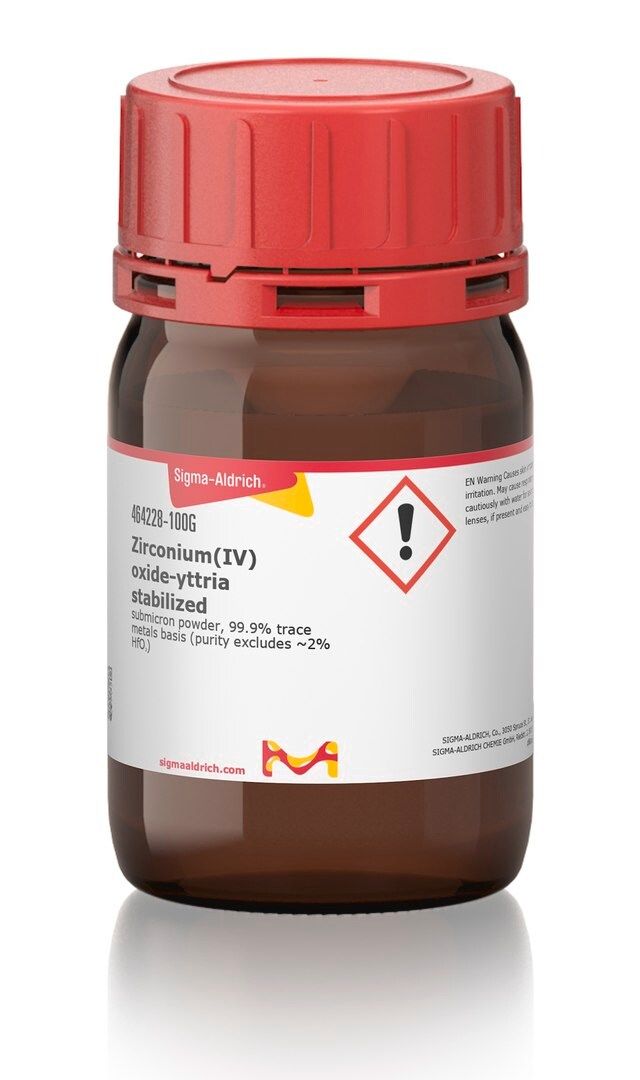

Zirconium(IV) oxide-yttria stabilized (YSZ) (submicron powder) is an oxygen ion conductor with properties such as good ionic conductivity and high physiochemical stability. Its other properties include excellent shock resistance, low thermal conductivity and a high coefficient of thermal expansion.
Yttria stabilized zirconia (YSZ) is the most commonly used solid electrolyte for solid oxide fuel cells (SOFCs) and oxygen sensors. YSZ exhibits high oxygen-ionic conductivity while blocking electronic conduction. YSZ particles may be synthesized from yttrium nitrate or isopropoxide by the sol gel method. YSZ nanoparticles may be prepared in supercritical water (SCW). YSZ nanoparticles of different sizes with varying % mol of yttria may be obtained by CO2 laser based continuous/pulsed laser vaporization method.
应用
Collagen-yttria-stabilized amorphous zirconia hybrid scaffolds may be developed. YSZ thin films may be used as thermal barrier coatings on combustors, stationary and rotating components of gas turbines or diesel engines. 6
YSZ can be used for a variety of applications such as:
- a thermal barrier coating for the protection and insulation of metal components in gas turbines
- an electrolyte in the fabrication of solid oxide fuel cells (SOFCs)
- in the fabrication of zirconia dental implant abutments
- membranes for micro energy conversion devices
- a solid acid and a catalyst for catalytic applications
用于固体氧化物燃料电池 (SOFC) 的电解质材料。
包装
100, 500 g in glass bottle
Packaged in glass bottles
基本信息
| 线性分子式 | ZrO2 · Y2O3 |
| 分子量 | 349.03 |
| MDL编号 | MFCD00145546 |
| PubChem化学物质编号 | 329757174 |
| NACRES | NA.23 |
产品性质
| 质量水平 | 100 |
| 测定 | 99.9% trace metals basis (purity excludes ~2% HfO2) |
| 形式 | submicron powder |
| 包含 | ~8 wt. % yttria as stabilizer |
| 环保替代产品特性 | Design for Energy Efficiency Learn more about the Principles of Green Chemistry. |
| 粒径 | ~700 nm |
| 表面积 | 5.0-9.0 m2/g |
| mp | >2,600 ℃ (lit.) |
| application(s) | battery manufacturing |
| 环保替代产品分类 | Enabling |
| SMILES string | O=[Zr]=O.O=[Y]O[Y]=O |
| InChI | 1S/5O.2Y.Zr |
| InChI key | KSTOPEBVPBSOTK-UHFFFAOYSA-N |
安全信息
| 象形图 |  |
| 警示用语： | Warning |
| 危险声明 | H315 - H319 - H335 |
| 预防措施声明 | P261 - P264 - P271 - P280 - P302 + P352 - P305 + P351 + P338 |
| 危险分类 | Eye Irrit. 2 - Skin Irrit. 2 - STOT SE 3 |
| 靶器官 | Respiratory system |
| 储存分类代码 | 11 - Combustible Solids |
| WGK | WGK 3 |
| 闪点(F) | Not applicable |
| 闪点(C) | Not applicable |
| 个人防护装备 | dust mask type N95 (US), Eyeshields, Gloves |
