产品说明
一般描述

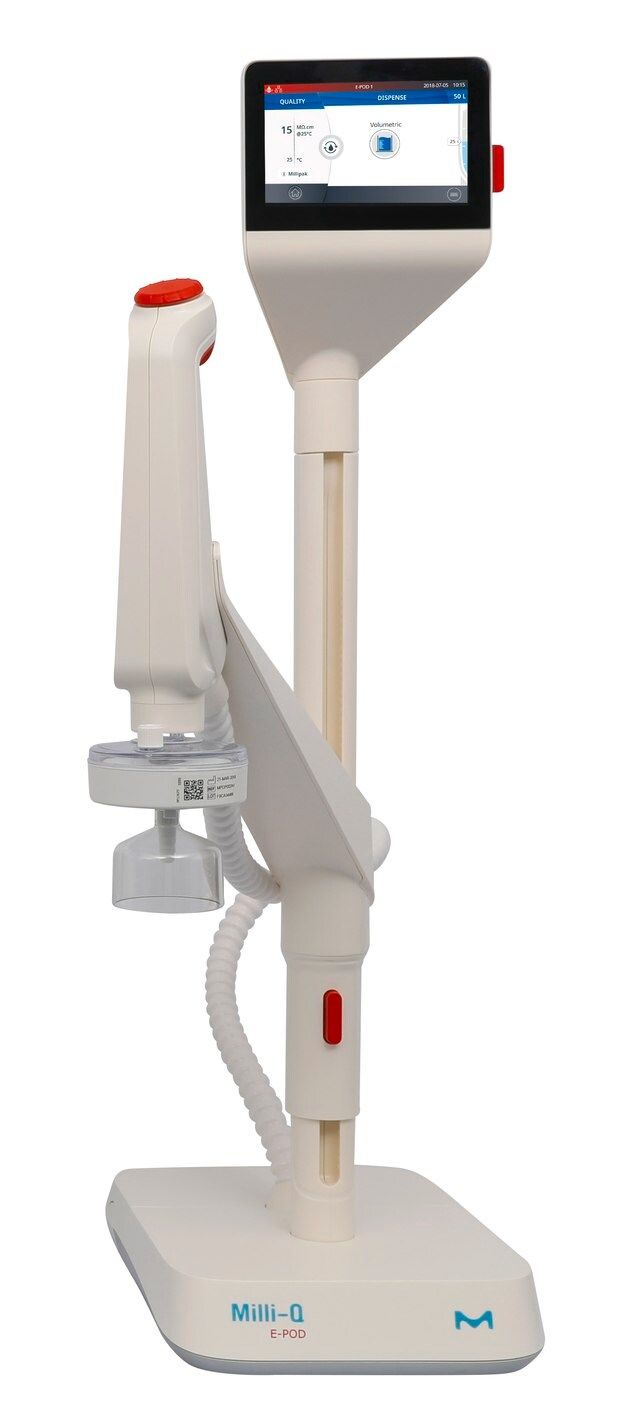

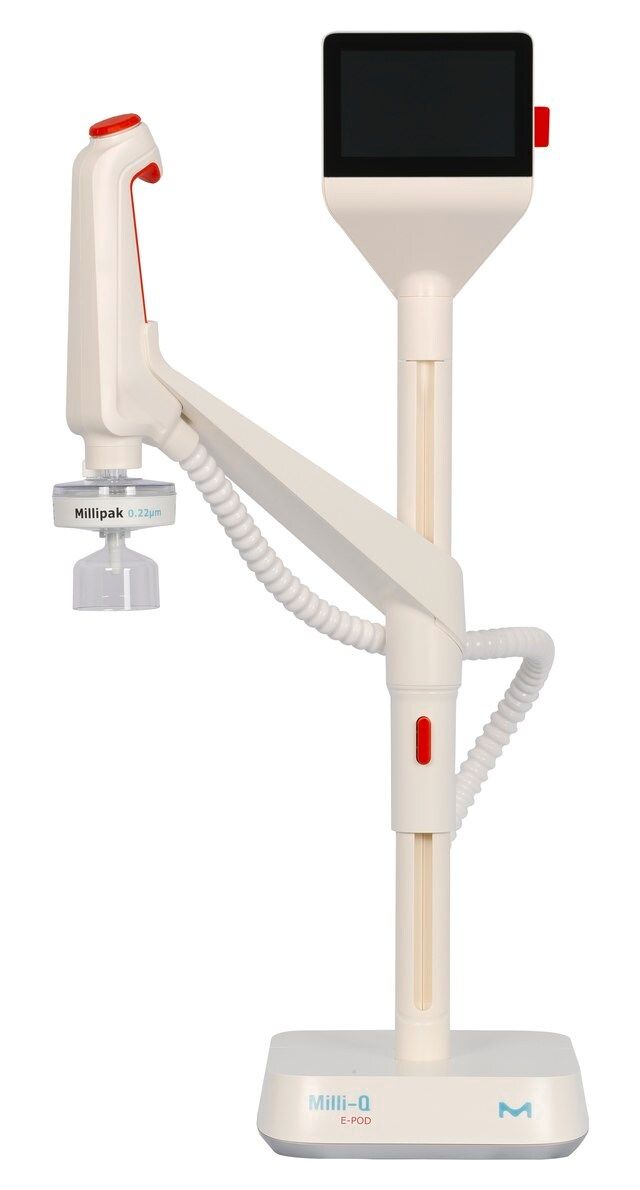

Always have rapid and convenient access to pressurized Type 2 pure water. This ergonomic dispenser is compact and intuitive to use, supporting an efficient working environment. Essential system functions remain close at hand on the E-POD® touchscreen interface.
应用
The E-POD® remote dispenser is designed to provide dispensing Type 2 pure water flexibility, with variable flow rates and volumetric dispensing.
特点和优势
- One E-POD® dispenser can be connected to a Milli-Q® IQ 7003/05/10/15 water purification system.
- Two E-POD® dispensers can be connected to a Milli-Q® IX 7003/05/10/15 water purification system.
- Provides pressurized pure water, up to 2 L/min.
- 3 different final filters can be connected to target specific contaminants and remove them right when dispensing pure water.
- 5” touchscreen with bright, colored LCD display is easy to read and convenient to use, even with gloves on. It is located at eye level and orientable (120°).
- Navigation in operating and dispensing modes is intuitive, without spending time going through multiples menus to find the information.
- Graphic icons on the display allow all users to quickly and easily operate the system.
- Comprehensive information displayed on the screen (water quality, system status, tank level, operating mode, volume dispensed) allows to always dispense the expected water quality.
- Two modes to dispense pure water:
Volumetric water dispensing automatically delivers a specific water volume, from 20 mL to 100 L (in 1 mL increments).
- The water dispenser has more than 1,500 positions (up to 30 horizontal notched positions, 360° around, and 54 vertical notched positions). Hence, daily operations are easier because the dispenser is well adapted to the size and shape of all the containers used in the laboratory.
- Can be installed on a wall-mounted horizontal articulated extension, allowing for maximum bench space.
法律信息
E-POD is a registered trademark of Merck KGaA, Darmstadt, Germany
Milli-Q is a registered trademark of Merck KGaA, Darmstadt, Germany
产品性质
包装 | pkg of 1 unit |
manufacturer/tradename | E-POD® |
参数 | 2 L/min flow rate 5.5 kg operating weight |
高度 × 直径 × 宽度 | 27.6 in. × 10.6 in. × 8.3 in. |
input | potable tap water |
output | type 2 water (> 5 MΩ·cm) (25℃) |
电导率 | 0.2 μS/cm at 25 ℃ (water output) |
相容性 | for use with Milli-Q® IX 7003 for use with Milli-Q® IX 7005 for use with Milli-Q® IX 7010 for use with Milli-Q® IX 7015 for use with Milli-Q® IQ 7003 for use with Milli-Q® IQ 7005 for use with Milli-Q® IQ 7010 for use with Milli-Q® IQ 7015 |
