产品说明
一般描述
Grace Bio-Labs ProPlate® multi-array chamber tray sets are designed to be used with ONCYTE® nitrocellulose-coated slides. These multi-array chambers integrate microscope slide based microarray technology with high-throughput (HTS applications) microtiter plate processing. Up to 64 individual arrays can be assayed per slide.
Three or four slides fit into a tray (depending on clip choice). The resulting multi-array chamber tray set produces a modular plate with a standard microtiter plate footprint and well spacing allowing high-throughput robotic processing of up to 256 arrays.
Features:
- Up to 16 or 64 leak-proof wells on any slide surface without the use of adhesive
- Microtiter plate well spacing facilitates use with multichannel pipettes
- 7 x 7 mm square wells are ideal for high content arrays 5-350 uL well volumes accommodate small reagent and large wash volumes

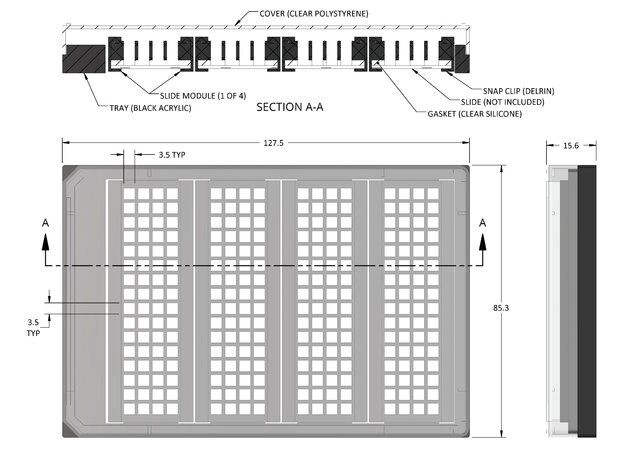

16 or 64 well ProPlate® tray sets include the following:
- 7 x 7 mm well dimensions (x 4)
- 16 or 64 well capacity
- Stainless steel Delrin® snap clips (x 8)
- Tray & cover included (x 1)
- 10 seal strips (x 10) and 1 seal strip applicator (x 1)
法律信息
Delrin is a registered trademark of E. I. du Pont de Nemours and Company
Oncyte is a registered trademark of Grace Bio-Labs, Inc.
ProPlate is a registered trademark of Grace Bio-Labs, Inc.
产品性质
| 物料 | black silicone (on Delrin) square wells |
| 无菌性 | non-sterile |
| manufacturer/tradename | Grace Bio-Labs 247865 |
| 尺寸 | 64 wells |
| well area | 0.13 cm2 |
| 孔体积 | 350 μL |
| 颜色 | none |
