产品说明
一般描述

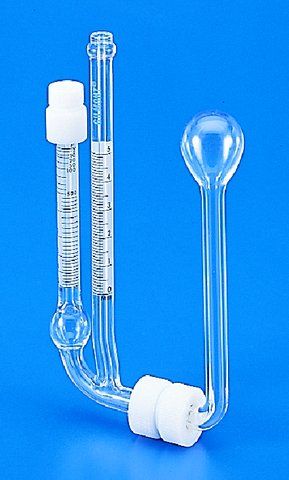

Made with permanent linear and square root ceramic scales on a white background, high-vacuum O-ring seals, precision bore capillaries, Delrin® plastic and black anodized aluminum parts. Accurate to ±3% of reading or 1mm of scale division, whichever is greater. Gauges include operating instructions but do not include oil or mercury fill. Swivel arrangement permits rigid connection to the vacuum system with the scales vertical at all times.
法律信息
Aldrich is a registered trademark of sigma-aldrich Co. LLC
Delrin is a registered trademark of E. I. du Pont de Nemours and Company
基本信息
NACRES | NB.79 |
产品性质

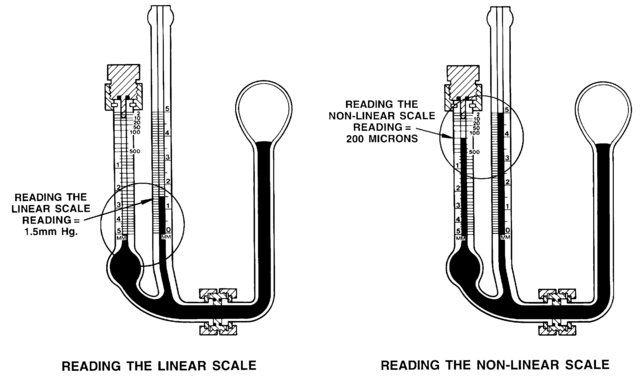

描述 | Square root scale: 1 millitorr to 1 torr |
线性比例 | 0-1 torr, in 0.02 torr div. |
web metadata keyword.default | McLeod vacuum gauge, McLeod gauge, McLeod swivel gauge, McLeod swivel vacuum gauge, vacuum gauge, swivel gauge |
