产品说明
一般描述
For non-corrosive, high-purity gas applications.
Regulator specifications:
Single stage, panel-mounted stainless steel body and pressure diaphragm, cartridge type seat PCTFE, PTFE and PCTFE seals, self seating type relief valve, 2 inch diameter stainless steel gauges, helium leak rate tested at 1 x 10-8 ssc/sec., 3000 psig maximum inlet pressure, 0-80 psig delivery range, Stainless steel outlet needle valve with

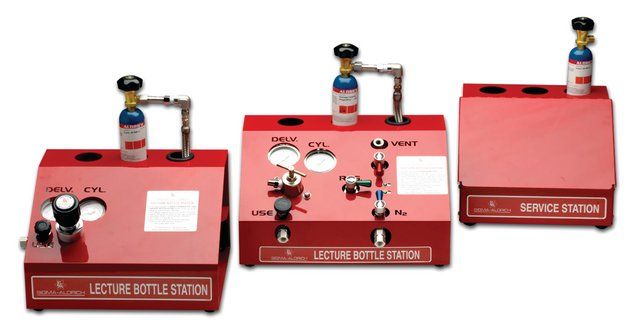

Dispensing lecture-bottle gases has never been safer or simpler using these portable lecture-bottle stations. The premium quality components housed within a station are matched to the application, fully assembled, leak-tested, and ready for use.
Just connect the station to the lecture-bottle, process, and a source of inert gas, if using a station with a purge valve, and you are ready to go.
Safe and Simple:
- Gas dispensing and storage in one compact, portable system
- Keeps lecture-bottles upright and stable, eliminates tip-over
- Reduces equipment damage and chance of personal injury
- Choice of four models matched to the application
- Online Lecture-Bottle Equipment to Gases Selection Guide
Station Specifications:
1. Heavy-gauge steel cabinet with durable, red enamel finish, table-top or wall mountable
2. Quality, panel-mounted regulators and purge valves
3. Braided, 316L stainless steel hose with CGA-180 remote connection to the lecture-bottle
4. Support for two lecture-bottles, one in use and a spare
5. Clearly labeled gauges, gas connections, and valve functions
6. Instructions for Use label on front of cabinet
7. Fully assembled, leak-tested and ready for use
联系
For more information on station set-up, see the Lecture Bottle Technical Bulletin
法律信息
Aldrich is a registered trademark of sigma-aldrich Co. LLC
基本信息
| NACRES | NB.51 |
产品性质
| 物料 | stainless steel regulator |
| 入口CGA | 180 |
| 总宽度 × 直径 × 高度 | 14 in. × 12 in. × 8 1/2 in. |
