Aldrich^® compact ductless air cleaning system

产品说明

一般描述

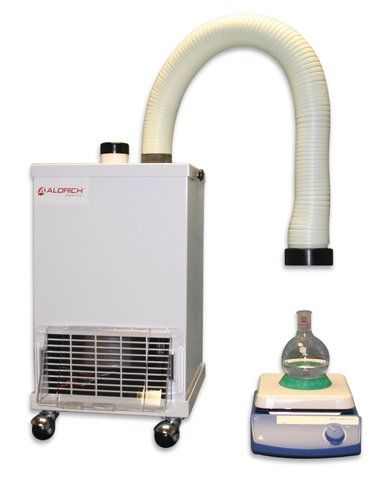

Portable, self-contained compact air cleaning systems capture air contaminants directly at the source and safely remove them before clean air is released into the room. Optional castor base allows easy movement of system to locations throughout the lab. Fume hood shown in image not included.

Typical applications:

• Chemical vapors and dusts
• Cleaning/working with solvents
• Clean room applications
• Soldering and welding operations

Filter Selection:

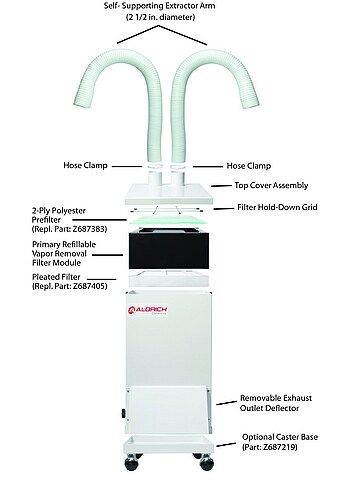

A powerful blower pulls contaminated air from the source through a series of filters and adsorption media to effectively remove particulates and vapors. Various filter media options are available and are matched to the specific contaminants to get the best results. All systems come with the prefilter (Z687383). Systems do not include filter media modules. See the Air Cleaner System Selection Guide for choosing appropriate filter media modules.

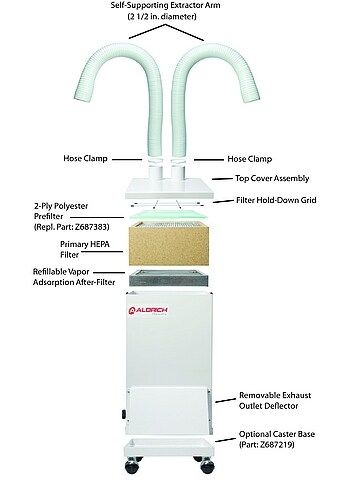

The HEPA Filter Modules are for applications where there are visible airborne particulates. The Primary Vapor Modules are for removing chemical vapors that have no dust or particulates. The Filter Media Refills are replacements for both the Primary Vapor and Hepa Filter Modules.

Specifications:

• Cabinet: 18 gauge steel, baked polyurethane powder painted
• Prefilter, 2-ply polyester panel
• Dimensions: 12 1/2 in. W x 19 1/2 in. H x 12 1/2 in. D
• Weight: 30 lb.
• Blower: 350 W, 2.8 A, 120/1/60, 2000 rpm or 230/1/50, 2000 rpm with variable speed control, power cord with US or Euro plug
• 350 CFM @ 0.5 in. of E.S.P.
• Velocity at arm inlets*: 3500 FPM per arm
• Noise level**: 66 dBA @ 6 ft
• 230 V AC systems are CE compliant.

*: Velocities are based on operation with a clean poly-panel prefilter and an ASHRAE primary filter. Performance varies with other combinations.
**: Noise level is based on performance with 2 extractor arms and a clean poly-panel prefilter and a 95% ASHRAE primary filter. Noise levels may vary with other inlet and filter combinations.

应用

Aerospace
Biological Sciences
Environmental Science
Foods/Beverages
Forensics
Genetic Technology
Material Science
Homeland Security
Medical Sciences
Metallurgy
Paints/Coatings
Paper/Pulp
Pathology
Petroleum
Pharmaceuticals
Physical Sciences
Plastics
Rubber
Semiconductor

法律信息

Aldrich is a registered trademark of sigma-aldrich Co. LLC

基本信息

NACRES

NB.43

产品性质

特点	CE compliant
