Aldrich® check-valve bubbler

品牌
Sigma-Aldrich
货号
Z225029
规格纯度
T-inlet tube, side outlet
参考价格
3974.21 *本价格含增值税费
促销
数量
-+
产品介绍:

产品说明

一般描述

Filling

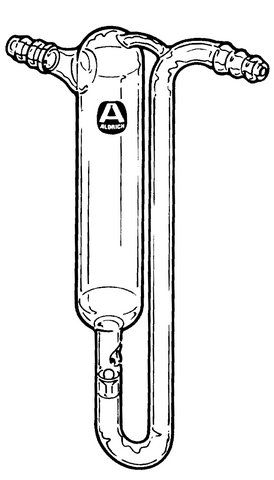

Position the bubbler on it′s side with the left hose barb (as shown in the drawing) pointing straight up, then pipette 15 mL of oil through the hose barb into the bubbler reservoir. Position bubbler vertically as shown in drawing and it is ready to use.

Principal of operation

Gas enters the bubbler from the hose barb on the right and flows through the bubbler, exiting at the left. The gas pressure unseats the check-valve ball to release the pressure, bubbling up through the oil and out the left side. The check-valve ball reseats itself when pressure is neutralized. The advantage of a check-valve over bubbler such as Z223719 which does not have one, is that it prevents oil from being drawn from the bubbler reservoir into the reaction if a sudden negative pressure occurs.

法律信息

Aldrich is a registered trademark of sigma-aldrich Co. LLC

基本信息

NACRESNB.43

产品性质

容量15 mL
