Take replacement CAPFE O-ring, Ace 7855-880.
Rugged heavy-wall reactors with a Schott flange with shallow O-ring groove at the top for connection to a jointed head with quick-release clamp. These complete bench top systems include all components required for operation except an IKA® stirrer motor, model RW 20.n, which is recommended for all reactor sizes. See the stirrer section for a listing of these products.

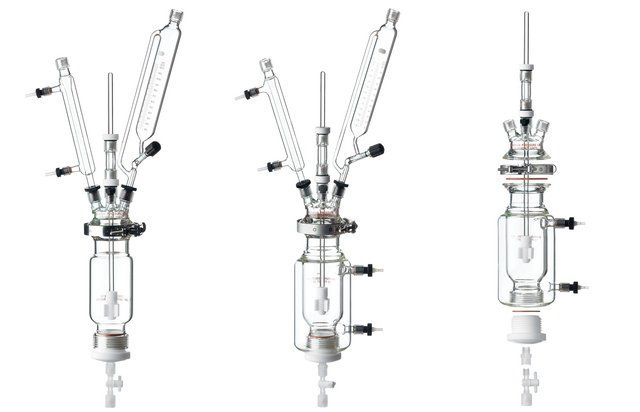

Choice of two models:
Pressure filter reactor - rated 35 psig @ 100℃, Ace Threds allow use of vacuum or pressure to drain liquid from reactor, 2 x #15 and 1 x #7 AceThreds on 60 mm head, 3 x #15 and 1 x #7 Ace Threds on 100 mm head

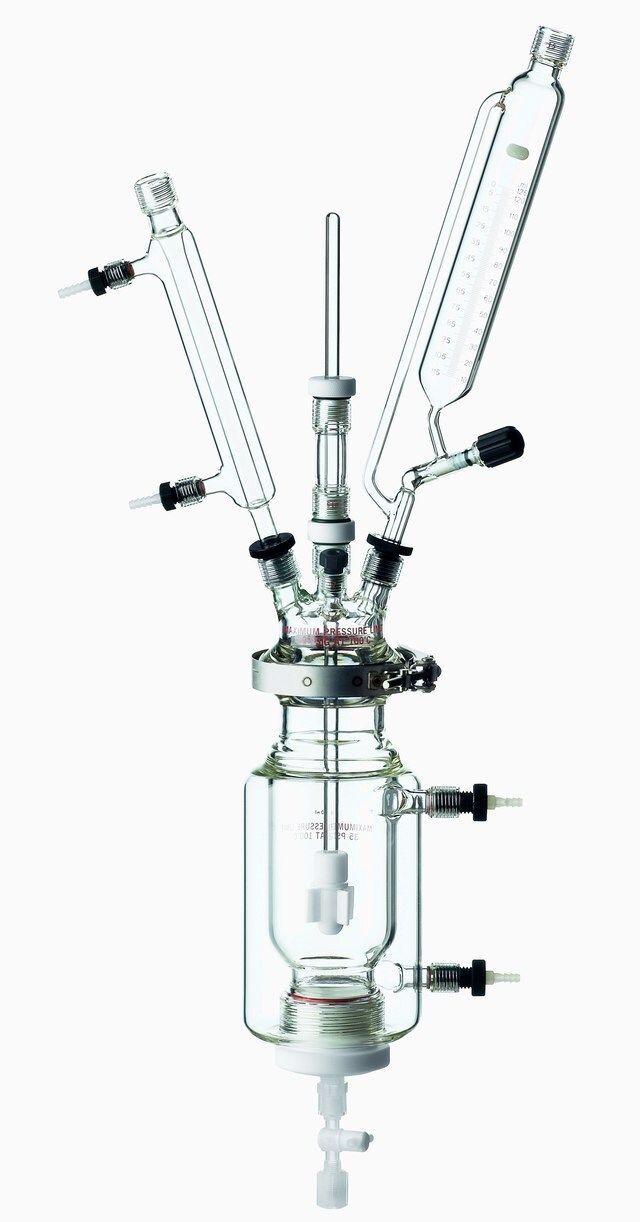

Jacketed pressure filter reactor - as above with jacket for heating or cooling reaction
Applications:
- Oxidation/reduction reactions where the particulate can be drawn down to a filter cake
- Nanotechnology where the material must be contained and the filtrate is the actual product or nano-particle needed
- Simple Bioreactor as gases can be introduced through pressure head via a pressure or NPT fittings and tubing
- Paints/pigments other viscous solutions
Both systems include:
- Heavy-wall glass reactor body and head, CAPFE O-ring and SS quick-release clamp
- Ace Thred PTFE bottom filter adapter, o-ring, and filter support, PTFE thread adapter, o-ring and PTFE bottom valve. Dead space below frit is 4.5-5 mL liquid w/ water viscosity +/- 0.5 mL
- Non-flaking stir shaft bearing
- Glass stir shaft with PTFE agitator assembly
- Addition funnel
- West condenser
- Support package including holed plate, stand, chain clamp, and holder
- PTFE stoppers
- Chuck adapter for IKA stirrer motor
法律信息
IKA is a registered trademark of IKA-Werke GmbH & Co. KG
基本信息
| NACRES | NB.51 |
产品性质
| 参数 | 35 psi pressure (at 100℃) |
| 主体内径 × 直径 | 100 mm × 180 mm |
| 容量 | 1 L |
| 凸缘内径 | 100 mm |
| 配件 | Ace-Thred |
