产品介绍：
产品说明
应用

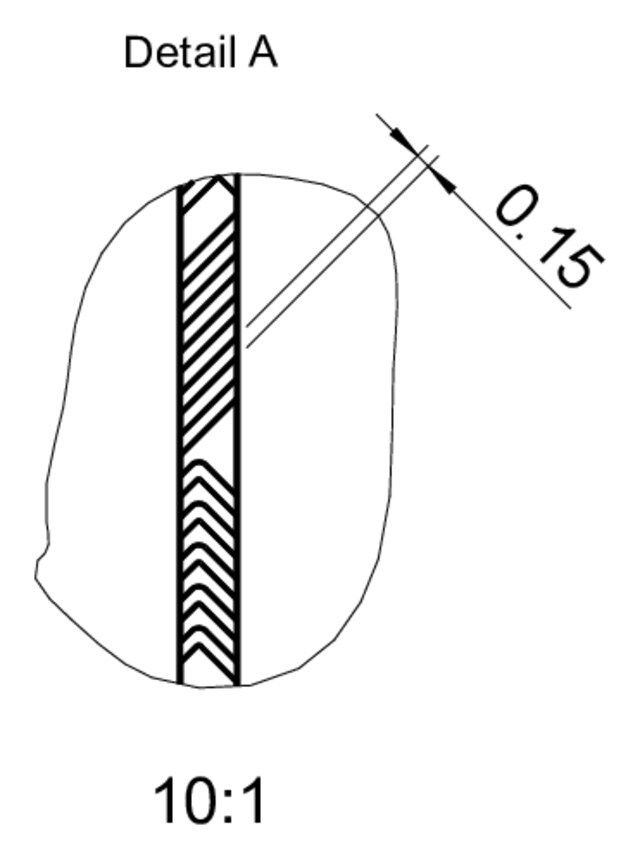

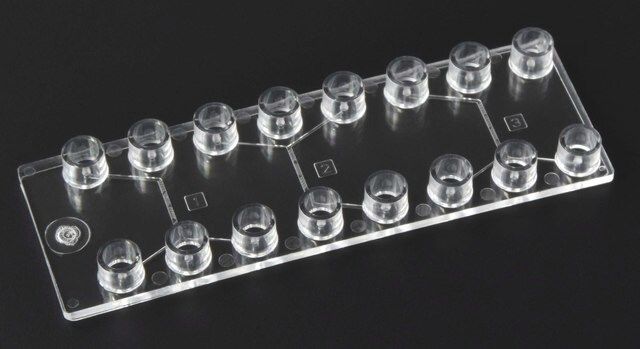

The Herringbone Mixer Fluidic 187 COP microfluidic chip applies passive mixing principles and a herringbone structure to improve mixing. As flows in microchannels are normally laminar, this mixer improves diffusion by adding herringbone structures to the bottom of the mixing channel.
特点和优势
- The herringbone structure improves mixing by increasing lateral velocity
- Three micromixing units per chip
- Each unit features two inlets and one outlet
- The multiple mixing units can be daisy-chained to further improve mixing
组分

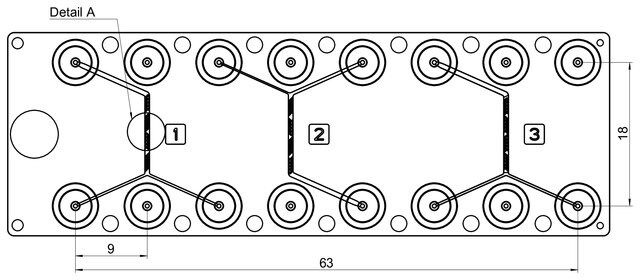

Chip Properties:
- Luer Interface
- Material: Cyclic Olefin Polymer (COP)
- Channel Depth: 200μm
- Channel Width Inlets: 300μm
- Channel Width Mixer: 600μm
- Channel Width Outlet: 600μm
This mixer is based on the principles described in A.D. Stroock et al., Chaotic Mixer for Microchannels, Science, 295, 647-651, 2002.
产品性质
| 描述 | Microfludic chip x1 |
