Herringbone Mixer Chip

品牌
Sigma-Aldrich
货号
926507
规格纯度
Fluidic 187, PC
参考价格
712.85 *本价格含增值税费
促销
数量
-+
产品介绍:

产品说明

应用

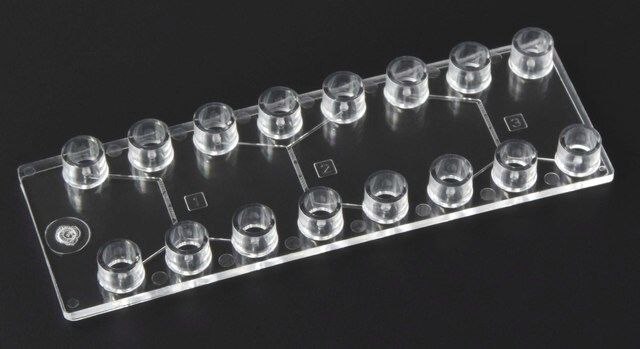

The Herringbone Mixer Fluidic 187 PC microfluidic chip applies passive mixing principles and a herringbone structure to improve mixing. As flows in microchannels are normally laminar, this mixer improves diffusion by adding herringbone structures to the bottom of the mixing channel.

特点和优势

  • The herringbone structure improves mixing by increasing lateral velocity
  • Three micromixing units per chip
  • Each unit features two inlets and one outlet
  • The multiple mixing units can be daisy-chained to further improve mixing

组分

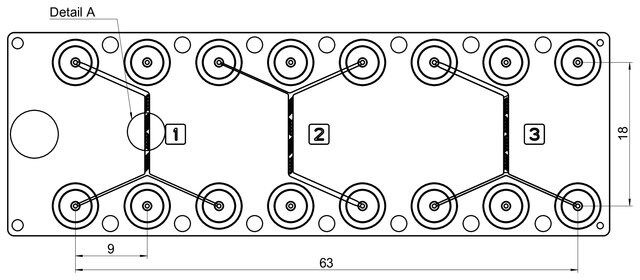

Chip Properties:

  • Luer Interface
  • Material: Polycarbonate (PC)
  • Channel Depth: 200μm
  • Channel Width Inlets: 300μm
  • Channel Width Mixer: 600μm
  • Channel Width Outlet: 600μm

This mixer is based on the principles described in A.D. Stroock et al., Chaotic Mixer for Microchannels, Science, 295, 647-651, 2002.

产品性质

描述Microfludic chip x1
