产品介绍:
产品说明
一般描述

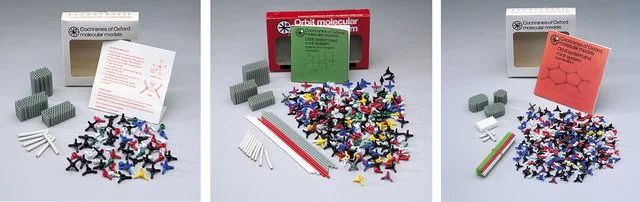

Build amino acids; monosaccharides, glycerol, fatty acids, steroids, purines and pyrimidines, peptides, disaccharides, lipids, nucleosides, nucleotides, proteins, polysaccharides, nucleic acids with this advanced student set in pocket-sized plastic container. Includes instruction/activity booklet.
Scale: 2 cm = 0.1 nanometer (1 A), Minit
ATOMS:
- 1-prong: Hydrogen, white (75), Oxygen, red (10), Sulfur, yellow (2), Chlorine, green (2)
- 2-prong linear: Hydrogen, white (10), Oxygen, red (10)
- 2-prong 100°: Sulfur, yellow (2)
- 2-prong 110°: Nitrogen, blue (2), Oxygen, red (25)
- 2-prong 120°: Nitrogen, blue (5)
- 3-prong 108°, 120°, 132°: Carbon, black (5)
- 3-prong 108°, 126°, 126°: Carbon, black (5)
- 3-prong 114°, 123°, 123°: Carbon, black (20), Nitrogen, blue (22)
- 3-prong 120°: Carbon, black (20), Nitrogen, blue (10)
- 4-prong tetrahedral: Carbon, black (30), Nitrogen, blue (2), Phosphorous, purple (5), Metal, silver (1)
- 6-prong octahedral: Iron, grey (1)
BONDS:
- Straw, green, 2.5 cm (40)
- Straw, green, 2 cm (80)
- Straw, green, 1.5 cm (80)
- Straw, white, 3.5 cm (20)
- Straw, mixed set/26 (1)
- St v flexible white, 2.5 cm (3)
一种以12色塑料原子提供15种原子键配置的广泛模型系统。 碳原子以九种构型表示:线性、三角形(五种角度变化)、四面体、八面体、三角-双锥体。模型有两种尺寸:Orbit和Minit。备用原子中心和键合管可用于所有模型套件。
请在我们的网站sigma-aldrich.com上查看技术信息公告AL-183以获取相关列表
基本信息
NACRES | NB.17 |
产品性质
特点 | no. of atoms 255 no. of bonds 220 |
manufacturer/tradename | Cochranes 0075 |
规模 | 2 cm = 0.1 nanometer (1 Å), Minit 3 cm = 0.1 nanometer (1 Å), Orbit |
