产品介绍:
产品说明
一般描述
- Single-stage
- Max. inlet pressure: 300 bar
- 316L Stainless Steel body and diaphragm
- Encapsulated Seat Design with a 10 Micron SS sintered filter
- Valve Seat: PCTFE
- Inlet: DIN 1
- Outlet: Control Valve 1/4"NPT Male Stainless Steel
- Captured Bonnet Vent
- Front and Rear Panel Mounting capabilities
- Cv=0.094
- Temperature Range: -20C to +60C
- Weight: 1.1 kg

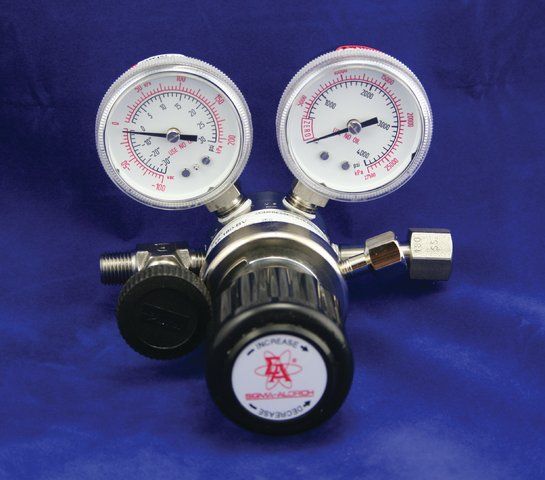

Designed for primary regulation of high or low cylinder pressure, (corrosive, toxic), or high purity (up to grade 6.0) gases to a stable outlet pressure. Covers a variety of applications including gas and liquid chromatography, high purity carrier gases, calibration gases, high purity chamber pressurization and many more.
其他说明
See Technical Information Bulletin AL-151 Gas Regulators: Selection, Installation and Operation.
法律信息
Aldrich is a registered trademark of sigma-aldrich Co. LLC
基本信息
NACRES | NB.51 |
产品性质
描述 | for sale in EU only |
