产品介绍：
产品说明
一般描述

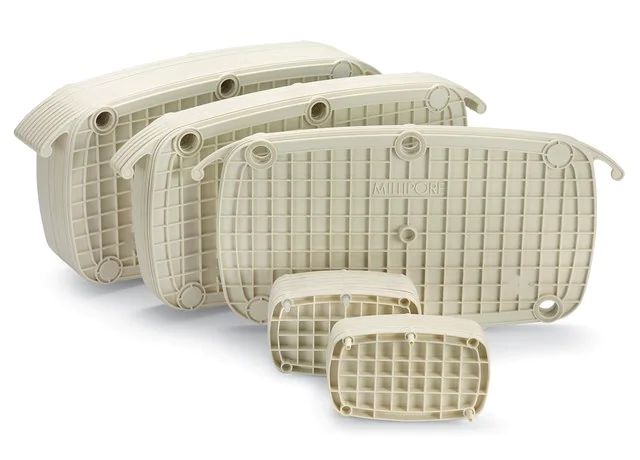

The Millistak+® Pod system is ideal for primary and secondary clarification applications for a wide variety of processes from disease-fighting antibodies to vaccines. The proven filtration performance of Millistak+® filter media in the popular Pod format provides greater flexibility and reduced cycle times. The Millistak+® HC series is dedicated to improving productivity by combining two distinct media layers that enhance filter capacity and retention. Multiple filtration stages downstream of the bioreactor are compressed into one efficient step.
Device Configuration: lab scale Pod
产品规格
Filter Grade: CE50
Filter Grade: CE50
法律信息
MILLISTAK+ is a registered trademark of Merck KGaA, Darmstadt, Germany
基本信息
| eCl@ss | 32031690 |
| NACRES | NB.24 |
产品性质
| 质量水平 | 400 |
| 物料 | cellulose glass fiber-reinforced polypropylene |
| 描述 | For clarification of serum, plasma, vaccines, cell culture or other fluids. |
| 特点 | hydrophilic |
| manufacturer/tradename | Millistak+® |
| 参数 | 1 bar max. differential pressure (15 psid) at 80 ℃ (Forward) 1 bar max. inlet pressure (15 psi) at 80 ℃ 2.1 bar max. differential pressure (30 psid) at 25 ℃ (Forward) 2.1 bar max. differential pressure (30 psid) at 25 ℃ (Reverse) 3.5 bar max. inlet pressure (50 psi) at 25 ℃ |
| 高度 | 14 cm (5.3 in.) |
| 长度 | 22 cm (8.5 in.) |
| 过滤面积 | 0.027 m2 |
| 杂质 | <0.25 EU/mL (LAL test, Aqueous extraction) |
| input | sample type liquid |
| 电导率 | 1.52 – 1.94 μS/cm (product water; post autoclave (1 cycle of 60 minutes at 123 ℃) and pure water flush of 5 liters per ft²(50 L/m²) of media surface area) |
| filter grade | CE50 |
| 运输 | ambient |
安全信息
| 储存分类代码 | 10-13 - German Storage Class 10 to 13 |
