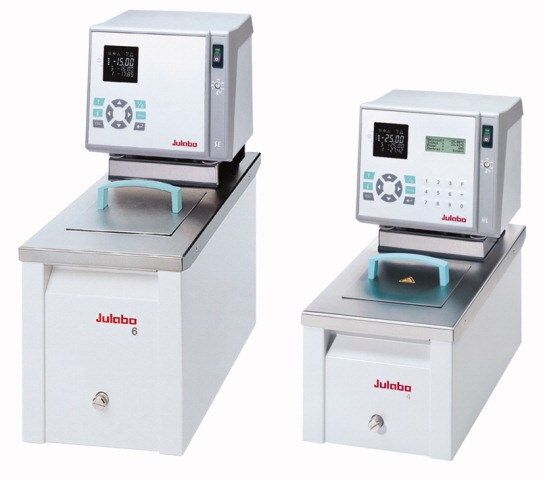

Julabo® HighTech heating circulator

货号
Z653128
规格纯度
HL-4, AC/DC input 230 V AC, bath useable volume 4.5 L, temp. range 20-250 °C
参考价格
84019.8 *本价格含增值税费
促销
数量
-+
产品介绍:

产品说明

一般描述

For internal and external temperature applications - compact and powerful. The HighTech series of microprocessor controlled (PID) heating circulators integrate features valued by those with more demanding applications.
The circulators provide higher operating temperatures and better stabilities than the Economy and TopTech series. All HighTech circulators are capable of monitoring an external system directly with an Pt 100 temperature sensor. Integrated RS232 interface. Safety class 3.
The HighTech series offers additionally:

  • ICC = Intelligent Cascade Control
  • Optimum temperature stability with varying systems achieved by the self-tuning controller, adjustable PID control parameters
  • VFD_comfort display, resolution to 0.01℃
  • External measurement and control with Pt 100 sensor, connections for programmer and temperature recorder
  • RS232 interface
  • LCD display (HL and SL models only) for convenient user-guidance, analog/digital setpoint input; display resolution: 0.01 up to 99.99℃
  • Integrated programmer with realtime clock

法律信息

Julabo is a registered trademark of Julabo USA, Inc.

产品性质

特点CE compliant
manufacturer/tradename HL-4
Julabo 9312504
参数0.4 bar suction pressure
0.7 bar pump pressure
20-250 ℃ temp. range
22-26 L/min pump flow
±0.01 ℃ temp. stability
加热容量 2 kw
液槽开口宽度 × 长度 × 直径13 cm × 15 cm × 15 cm
液槽可用体积4.5 L
总宽度 × 长度 × 直径21 cm × 42 cm × 40 cm
重量11 kg
