产品介绍：
产品说明
一般描述

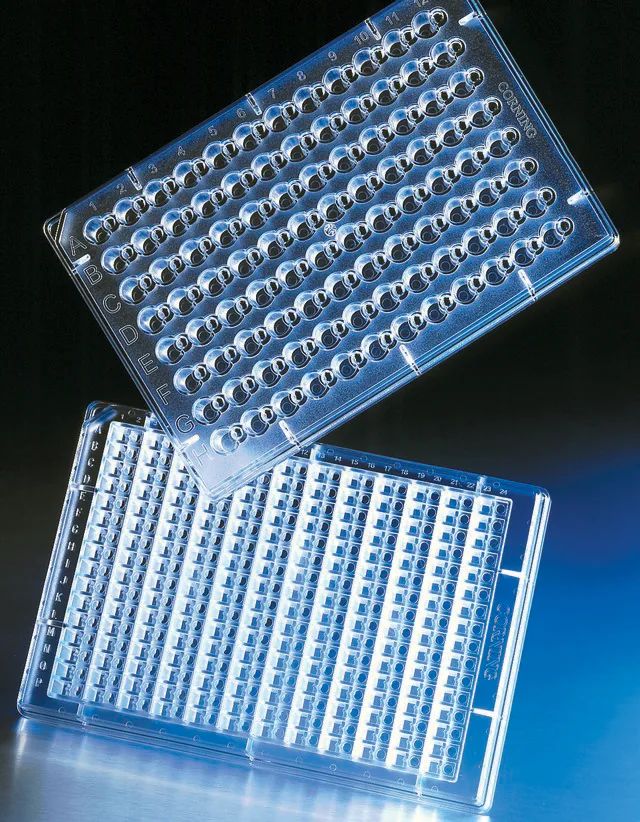

- Designed for sitting-drop vapor diffusion high throughput protein crystallization
- Features 96 reservoir wells and 96 corresponding protein wells
- Total well volume for the reservoir well is 210 μL; for the protein well is 7 μL
- Working volume for the reservoir well is 25 to 150 μL
- Flat bottom (1.5mm diameter) protein wells provide better crystal viewing for automated imaging systems
- Well surfaces are treated to be hydrophilic for improved microdrop mixing
- Compatible with 8 and 12 channel manual pipettors, automated liquid handling work stations and imaging systems
- Novel merged well design provides efficient vapor space for protein crystallization
- Manufactured from an advanced polymer with high resistance to commonly used solvents, including acetone, acetic acid, butanone, ethanol, isopropanol, methanol, DMSO, nitric acid (65%), sulfuric acid (40%), hydrochloric acid (36%), and ammonia solution (33%)
- Low background polarization and high optical clarity allows protein crystals to be easily viewed under polarized light with minimal background interference
- Low water absorption of the polymer prevents loss of protein drop volume
法律信息
Corning is a registered trademark of Corning, Inc.
CrystalEX is a trademark of Corning, Inc.
基本信息
| NACRES | NB.15 |
产品性质
| 物料 | clear plate cyclic olefin copolymer (COC) flat clear cyclic olefin copolymer (COC) round bottom wells clear |
| 无菌性 | non-sterile non-sterile |
| 特点 | lid: no lid: no (skirt) plate format: 96 wells protein wells: 1/reservoir well |
| 包装 | pack of 25 case of 50 |
| manufacturer/tradename | Corning 3785 |
| 储存器体积 | 210 μL |
| 尺寸 | 96 wells |
| 孔体积 | 10 μL , protein well volume |
| 孔工作体积 | 25-150 μL |
| 颜色 | clear |
| 适用性 | suitable for (sitting-drop vapor diffusion high throughput protein crystallization) |
| binding type | hydrophillic surface |
