产品介绍：
产品说明
一般描述

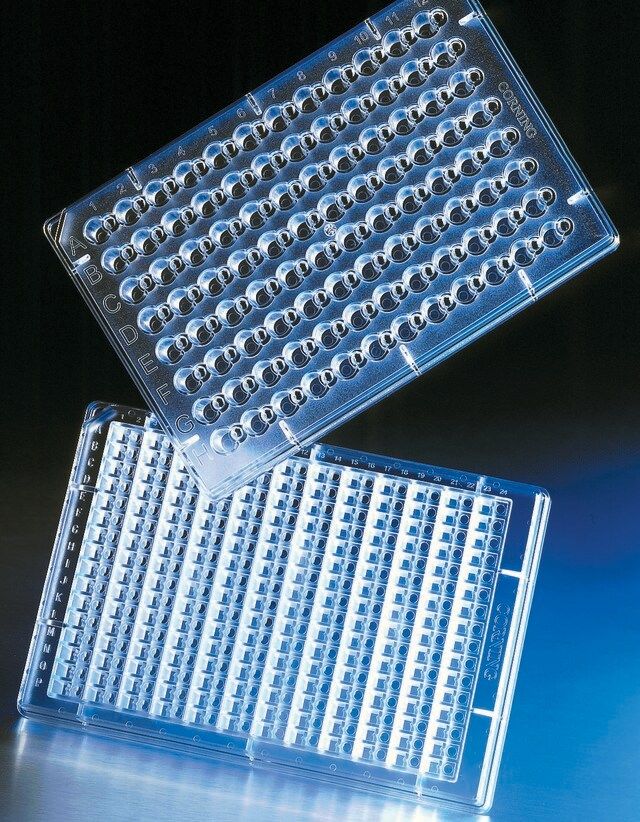

The Corning 96 well protein crystallization plate features large reservoir wells with corresponding protein wells. It is made of an advanced optical polymer (cyclic olefin copolymer (COC)) superior to polypropylene and polystyrene, which has higher optical clarity and greater resistance to organic solvents. The plate can be used for the sitting-drop method for high-throughput protein crystallization, and is compatible with manual pipettors and robotic operations.
The large reservoir well has a maximum volume of 100 μL, with a recommended working volume between 25 to 755 μL for screen reagents. The small protein well has a volume range of 1-4 μL.
- Each well contains one 4μL round bottom protein well and one 100μL reagent reservoir
- Low volume reagent reservoir saves on reagent costs
- Designed for sitting drop vapor diffusion high throughput protein crystallization
- Manufactured from an advanced Cyclic Olefin Copolymer (COC) with high resistance to commonly used solvents, including acetone, acetic acid, butanone, ethanol, isopropanol, methanol, DMSO, nitric acid (65%), sulfuric acid (40%), hydrochloric acid (36%), and ammonia solution (33%) and improved transparency
- Low water absorption of the polymer prevents loss of protein drop volume
- Reservoir numbers are embossed on each individual well for easy identification
法律信息
Corning is a registered trademark of Corning, Inc.
基本信息
| NACRES | NB.15 |
产品性质
| 物料 | clear plate cyclic olefin copolymer (COC) round bottom clear wells |
| 无菌性 | non-sterile |
| 特点 | lid: no plate format: 96 well protein wells: 1/reservoir well |
| 包装 | pack of 10 ea case of 50 ea |
| manufacturer/tradename | Corning 3556 |
| 储存器体积 | 100 μL |
| 尺寸 | 96 wells |
| 孔体积 | 4 μL , protein well volume |
| 孔工作体积 | 25-755 μL |
| 颜色 | clear |
| 适用性 | suitable for (sitting drop vapor diffusion high-throughput (HT) protein crystallization) |
| binding type | non-treated surface |
