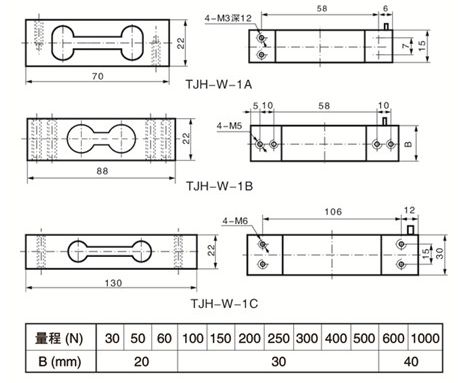

| 额定载荷 Rated Load | 30～1000(N) |
| 综合精度 Comprehensive Precision | 0.02～0.05%F·S |
| 灵敏度 Sensitivity | 2.0 mV/V |
| 蠕变 Creep | ±0.02 %F·S/30min |
| 零点输出 Zero Output | ±1 %F·S |
| 零点温度影响 Temperature Effect On Zero | ±0.02 %F·S/10℃ |
| 输出温度影响 Temperature Effect On Output | ±0.02 %F·S/10℃ |
| 工作温度 Operating Temperature Range | -20℃～+65℃ |
| 输入阻抗 Input Resistance | 400±20 Ω |
| 输出阻抗 Output Resistance | 350±5Ω |
| 绝缘电阻 Insulation Resistance | >5000 MΩ |
| 安全过载 Safe Load Limit | 150% F·S |
| 供桥电压 Bridge Voltage | 建议 10V DC |
| 材质 Material | 铝合金Aluminium |
传感器接线方式
Load Cell Mode of Connection | 输入+:红Input+: Red
输入-:黑Input-:Black
输出+:绿Output+:Green
输出-:白Output-:White |
变送器接线方式
Amplifierl Modeof Connection | 电源:红Power : Red
公共端:蓝Public side: Blue
输出:白Output:hite |
