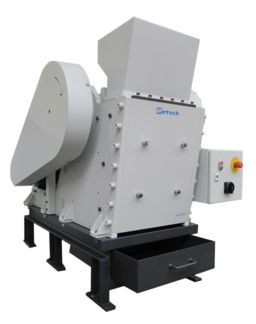

BB 600 XL用于快速，高效的中硬性，硬脆性和韧性样品预粉碎。

    较低的安装高度 (1 m)使得BB 600 XL适合于自动安装和进样的持续操作。BB 600 XL完整的设计很可能会取代现有的颚式破碎设备。少量的大块的样品可以用BB600XL进行批次处理。

应用实例
    合金, 岩石, 建筑原料, 氧化物陶瓷, 水泥熔渣, 炉渣, 焦炭, 煤, 玄武岩, 玻璃, 石英, 矿物, 矿石, 硅, 耐火粘土, 花岗岩, 长石, 陶瓷, ...

优    点
    ● 高破碎率
    ● high throughput up to 3,500 kg/h
    ● adjustable gap width setting
    ● 过载保护装置
    ● size of breaking jaws 600 mm high / 400 mm wide
    ● no-rebound feed hopper
    ● 易清洁粉碎腔
    ● continuous and batch-wise crushing
    ● 除尘接口
    ● central lubrication (optional)
    ● 特别适用于生产设备的一体化集成

性能指标

Please note:
受样品材料性质和仪器配置/设定的影响

作用原理
    The Jaw Crusher BB 600 XL is a robust and powerful jaw crusher. The feed material passes through the no-rebound hopper and enters the crushing chamber.

    Size reduction takes place in the wedge-shaped area between the fixed breaking jaw and the moveable breaking jaw driven by an eccentric drive shaft. The elliptical motion crushes the sample which then moves downwards under gravity.

    On reaching the discharge gap width, it falls into a removable collector or, for continuous applications, on a conveyor belt, vibratory feeder or sampler.

根据技术改造和误差调整
